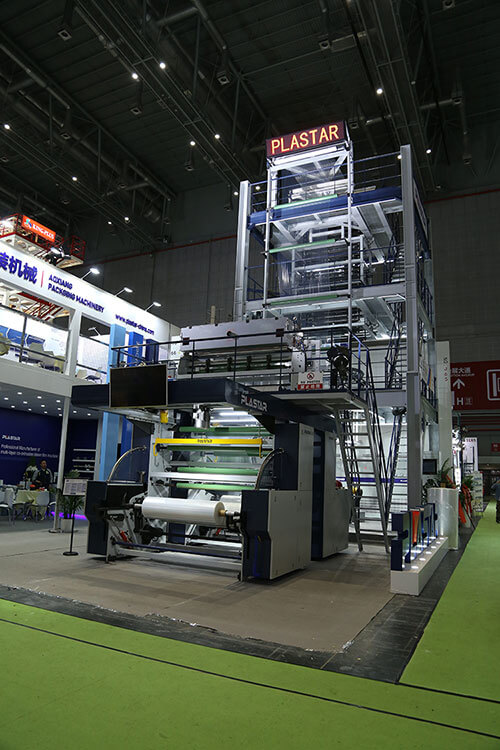

ABC Three-layer Co-extrusion Blow Film Machine

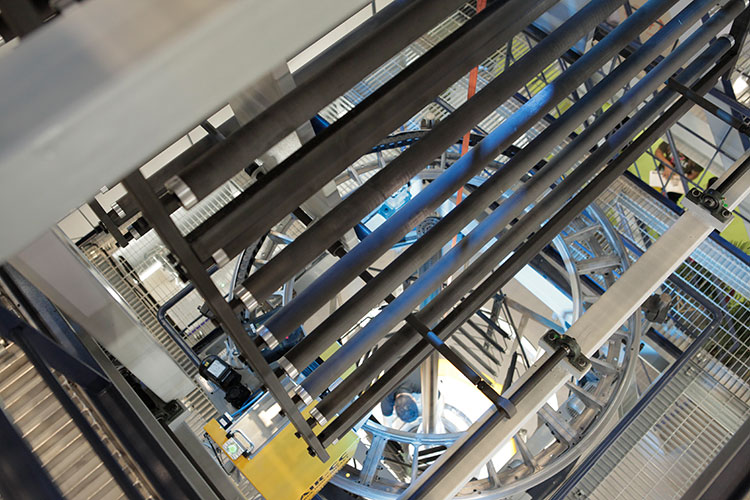

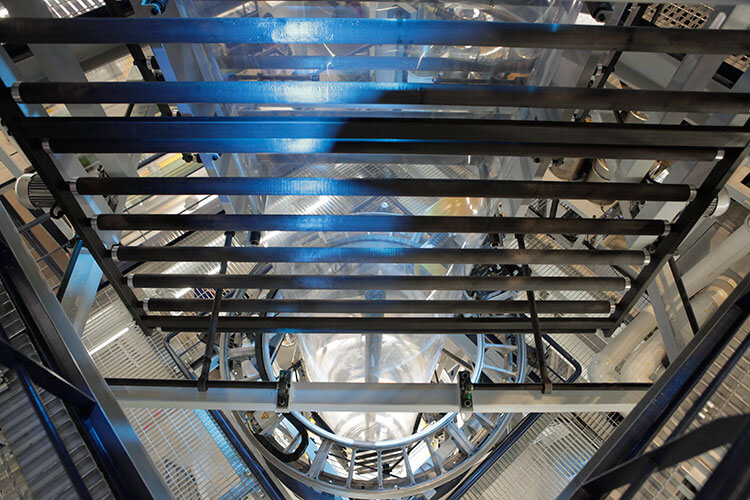

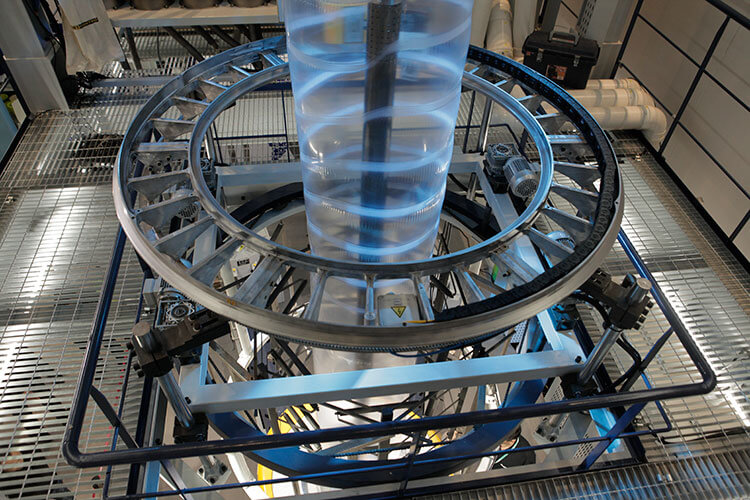

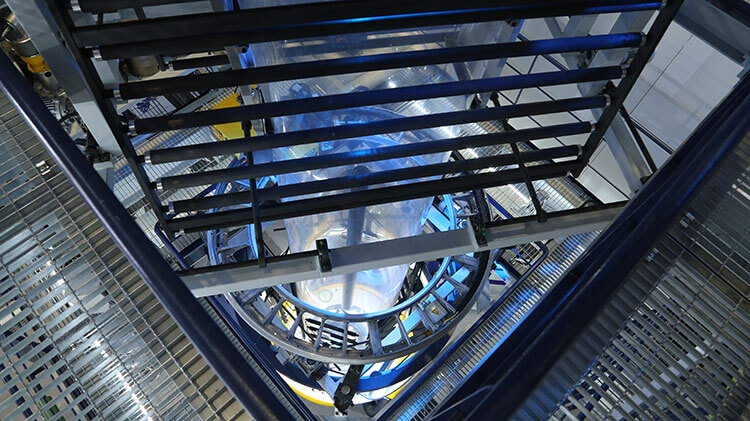

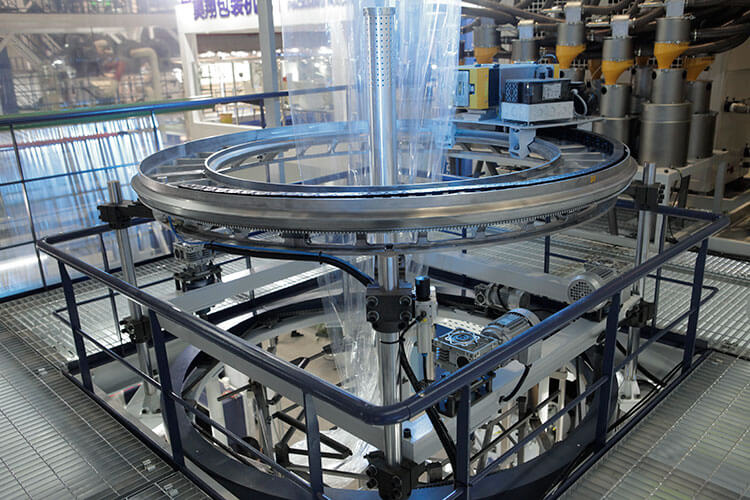

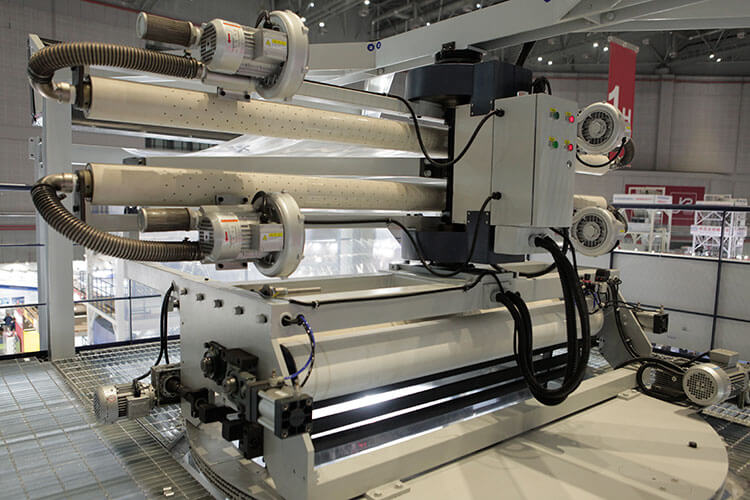

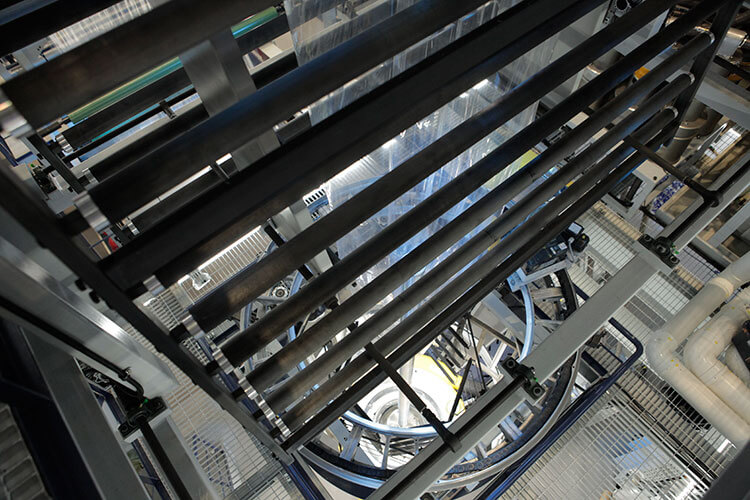

Three-layer co-extrusion film blowing machine adopts the new type of high efficiency and low energy consumption extrusion line with the IBC film cooling system inside the bubble, + 360 degree for traction on the horizontal rotating system and photoelectric automatic correction device, fully-automatic winding and film tension control, advanced technology such as computer screen automatic control system. Compared with the similar equipment, it has the advantages of higher output, better plasticizing and lower consumption as well we easier operation.
Up-traction technology has been at the highest level of China. SG-3L1500 type max output can reach 300kg/h while SG-3L1200 output up to 220-250kg/h.

CE 证书-Stretch Blowing Machine

CE证书-Film Blowing Machine

国家高新技术企业

外观设计专利证书-重闸板阀(米克)

Model	SGII-3L1000	SGII-3L1200	SGII-3L1500	SGII-3L2000
Suitable Material	HDPE / LDPE / LLDPE / EVA
Film Width	1000 mm	1200 mm	1500 mm	2000 mm
Film Thickness	0.002 - 0.2 mm
Max. Output	180kg / h	220kg / h	280kg / h	350kg / h

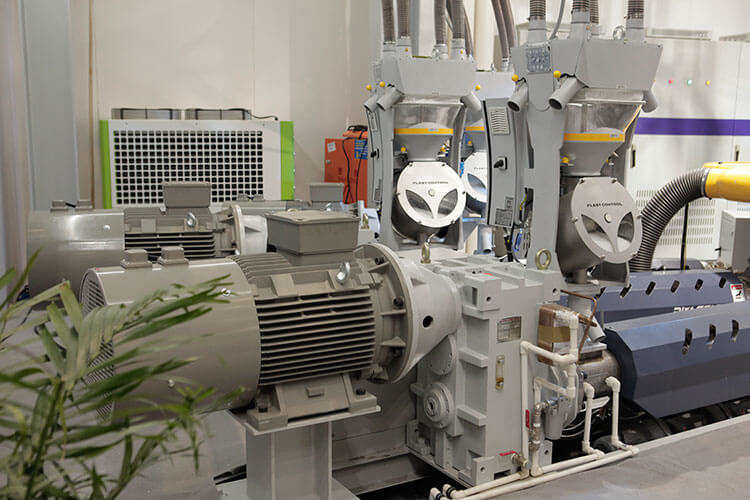

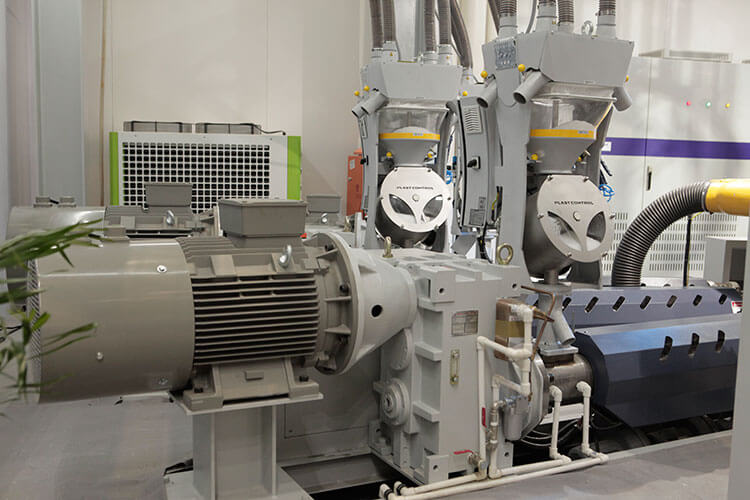

Extruder
Screw Diameter	50mm; 55mm	55mm; 60mm	60mm; 65mm	65mm; 75mm
Screw L/D	30:1
Barrel Cooling	Water Cooling
Main Motor Power	22kw 2 ; 30kw 1	30kw 2 ; 37kw 1	37kw 2 ; 45kw 1	37kw 2 ; 55kw 1
Total Power	105kw	180kw	190kw	220kw

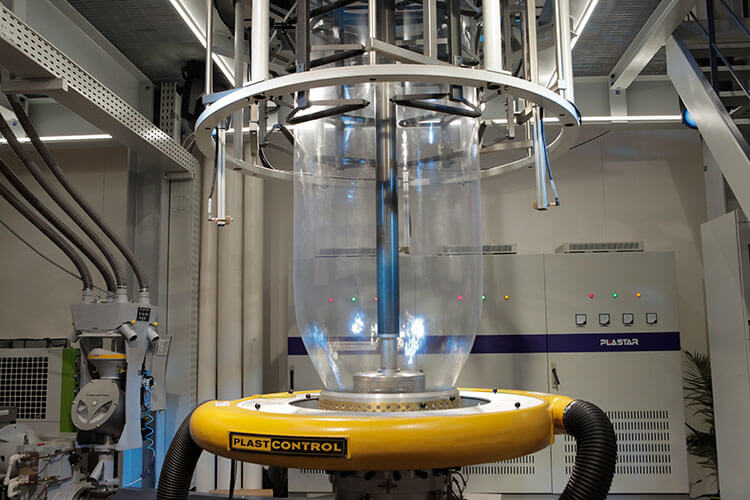

Die Head
Die Head Type	Three layers with inner cooling device
Air Ring	Double lips air ring
Traction Roller Width	Dia 165 * 1200 mm	180 * 1400 mm	Dia 200 * 1700 mm	Dia 220 * 2200 mm
Effective Width	Dia 165 * 1000 mm	180 * 1200 mm	Dia 200 * 1500 mm	Dia 220 * 2200 mm
Traction Speed	5 - 70 m/min	5 - 60 m/min	5 - 50 m/min	5 - 45 m/min

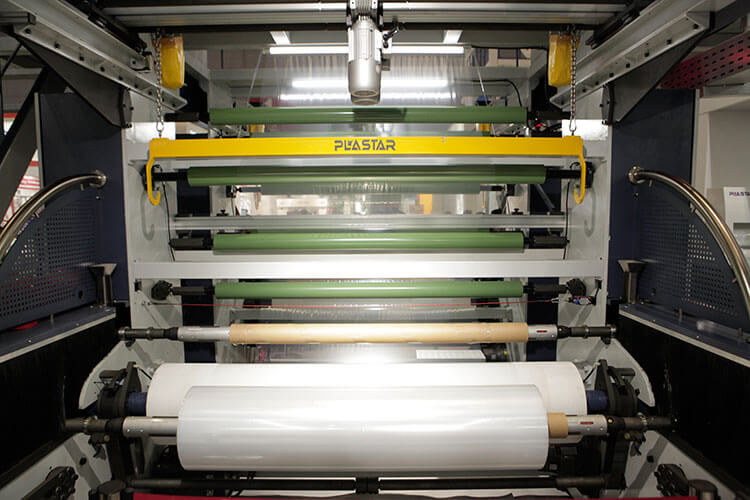

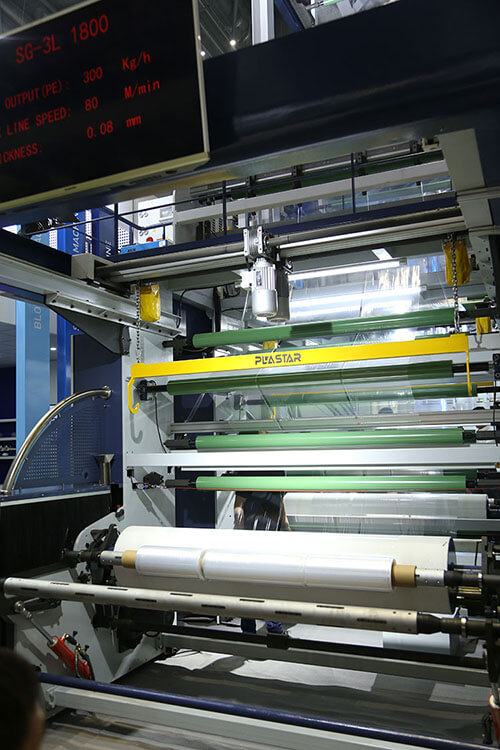

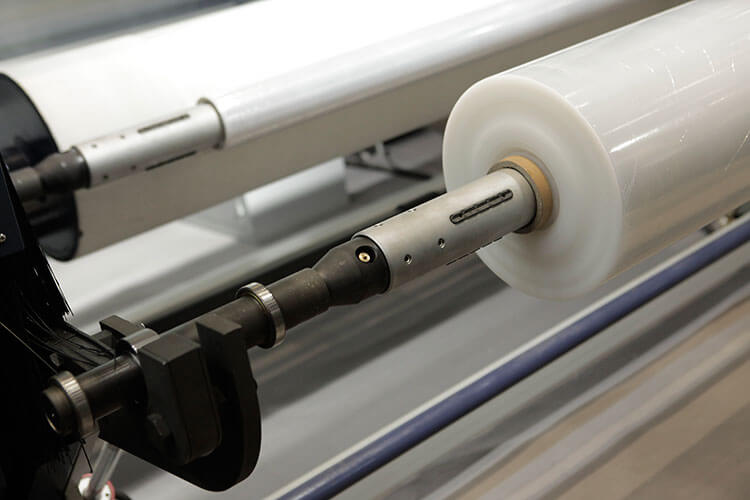

Winding Unit
Wingding Type	Friction type automatic single / double winder
Wingding Speed	5 - 70 m/min	5 - 60 m/min	5 - 50 m/min	5 - 45 m/min
Voltage	380V, 50Hz
Dimension	About 7.0 * 1.5 * 7.5 m	About 8.5 * 5.5 * 8.5 m	About 9.0 * 6.0 * 10.5 m	About 10.0 * 6.5 * 12 m
Weight	About 9 T	About 12 T	About 13 T	About 15 T
